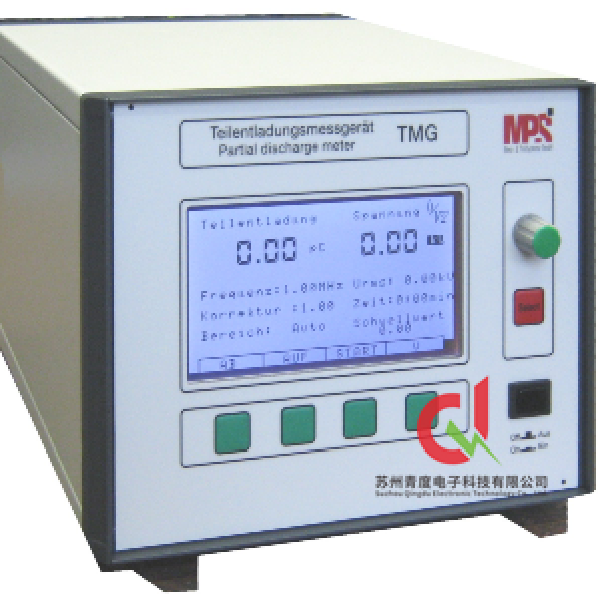

PARTIAL DISCHARGE METER TMG With the PD meter TMG you can do the following tests, according to standards IEC 60 270,and VDE 0434. Easy handling, robust for rough use in test laboratory and on-site Partial discharge displays: digital and quasi-analogue with bargraph; digital and phase resolved to the sine wave; digital and cloud display Two time windows for blanking of phase synchronized interferences RS 232, USB interface (IEEE 488, RS485 optional) Including measuring impedance and measuring cable Auto range, automatic and manual selection of PD- measuring ranges Options: -Peak voltage measurement Û/ √ 2 acc. to IEC 60060 and true Urms - RIV- measurement in µV acc. to NEMA107 /Ansi63.2 - Special module for measurement in C /sec and dB
Technical data:
2.5 - 5 - 10 - 25 - 50 - 100 .... 25000 pC
|
option up to 100 000pC |
Narrow band filter 0.1 ... 2.5 MHz adjustable in
|
10 kHz steps, bandwidth 15 kHz |
Broad band filter 40 - 250 kHz, 40 - 400 kHz
Correction factor 1.0 - 7.0 adjustable
|
Voltage input 0 - 50 V ( optional 0 - 5 V ) |
Voltage measuring accuracy 1.5 % of displayed value

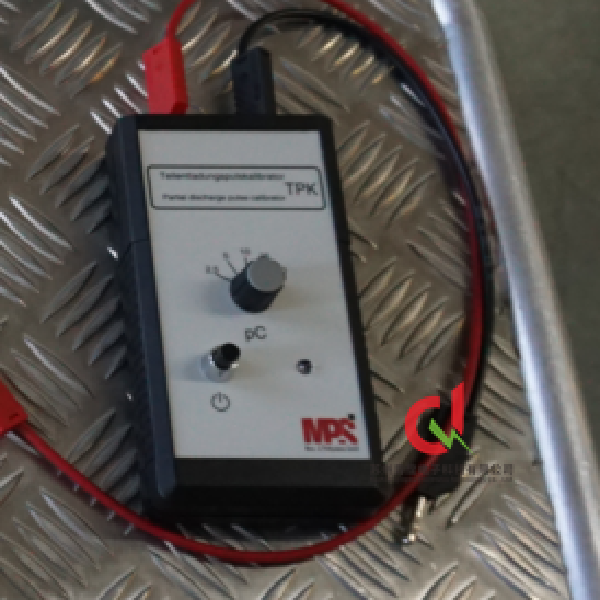

PARTIAL DISCHARGE CALIBRATOR TPK
for determination of the correction factor of the
PD-measuring circuit at no voltage
Technical data:
|
|
Options:
High voltage rigid PC- calibrators from 5kV up to 100kV
Additional PD- ranges on request
Special models with scale in dB, C² / sec
Analysing software EAPS or module in control software MSPS
Current measurement
